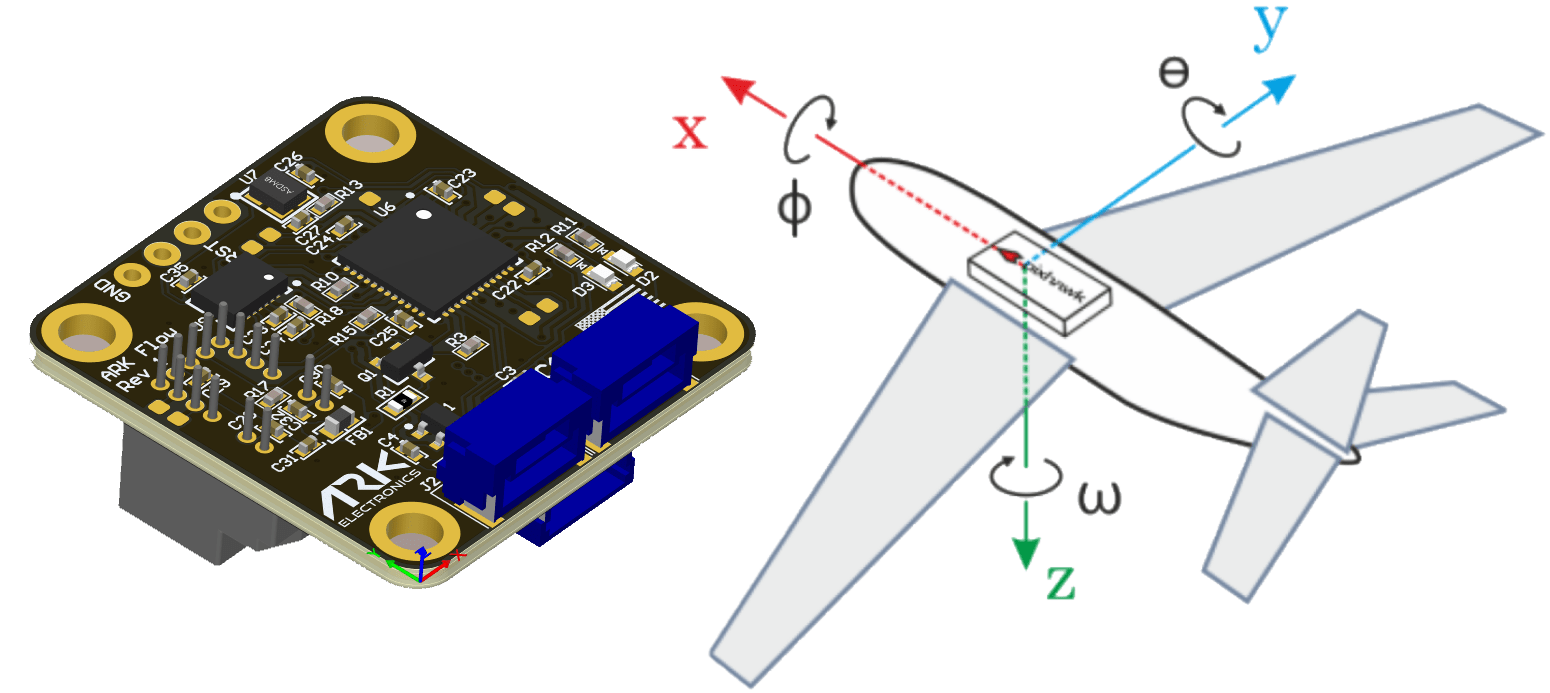

> For the complete documentation index, see [llms.txt](https://docs.arkelectron.com/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://docs.arkelectron.com/products/sensor/ark-flow/hardware.md). # Hardware Reference ## Specifications | Specification | Value | | ------------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | | Optical flow sensor | [PixArt PAW3902](https://www.pixart.com/products-detail/93/PAW3902JF-TXQT) | | Flow working range | 80 mm to infinity | | Low light | Tracks under super low light conditions of >9 lux. 40 mW IR LED on the board for improved low light operation | | Max flow rate | 7.4 rad/s | | Distance sensor | [Broadcom AFBR-S50LV85D](https://www.broadcom.com/products/optical-sensors/time-of-flight-3d-sensors/afbr-s50lv85d) time-of-flight, integrated 850 nm laser light source | | Distance range | Typically up to 30 m | | Field of view | 12.4° × 6.2° with 32 pixels. 2° × 2° transmitter beam illuminates 1 to 3 pixels | | IMU | [Bosch BMI088](https://www.bosch-sensortec.com/products/motion-sensors/imus/bmi088/) or [InvenSense ICM-42688-P](https://invensense.tdk.com/products/motion-tracking/6-axis/icm-42688-p/), 6-axis | | MCU | STM32F412CEU6 | | CAN | 2× Pixhawk-standard 4-pin JST-GH, software-toggleable built-in termination resistor | | Debug | Pixhawk-standard 6-pin JST-SH | | Power | 5 V, 71 mA average, 76 mA max | | Dimensions | 3 × 3 × 1.4 cm | | Weight | 5 g | ## Pinout ### CAN (×2) — 4-pin JST-GH | Pin | Signal | Voltage | | --- | ------ | ------- | | 1 | 5V | 5.0 V | | 2 | CAN\_P | 5.0 V | | 3 | CAN\_N | 5.0 V | | 4 | GND | GND | ### Debug — 6-pin JST-SH | Pin | Signal | Voltage | | --- | ---------- | ------- | | 1 | 3.3V | 3.3 V | | 2 | USART2\_TX | 3.3 V | | 3 | USART2\_RX | 3.3 V | | 4 | FMU\_SWDIO | 3.3 V | | 5 | FMU\_SWCLK | 3.3 V | | 6 | GND | GND | ## LEDs You will see both red and blue LEDs on the ARK Flow when it is being flashed, and a solid blue LED if it is running properly. If you see a solid red LED there is an error and you should check the following: * Make sure the flight controller has an SD card installed. * Make sure the Ark Flow has `ark_can-flow_canbootloader` installed prior to flashing `ark_can-flow_default`. * Remove binaries from the root and ufw directories of the SD card and try to build and flash again. ## Wiring The ARK Flow is connected to the CAN bus using a Pixhawk standard 4 pin JST GH cable. For more information, refer to the [CAN Wiring](https://docs.px4.io/main/en/can/#wiring) instructions. Multiple sensors can be connected by plugging additional sensors into the ARK Flow's second CAN connector. ## Mounting The recommended mounting orientation is with the connectors on the board pointing towards **back of vehicle**, as shown in the following picture. ![ARK Flow align with Pixhawk](https://docs.px4.io/main/assets/ark_flow_orientation.auMVvxJ0.png) ## 3D Model and Case | File | Contents | | ------------------------------------------------------------------------------------------------------------------------------------------------------------- | ------------------------------------------- | | [ARK\_Flow\_Rev\_2\_3D\_Model.step](https://github.com/ARK-Electronics/ark-hardware/raw/main/ARK_Flow/model/ARK_Flow_Rev_2_3D_Model.step) | Board, rev 2 | | [ARK\_Flow\_Rev\_2\_3D\_Model\_With\_FOV.step](https://github.com/ARK-Electronics/ark-hardware/raw/main/ARK_Flow/model/ARK_Flow_Rev_2_3D_Model_With_FOV.step) | Board, rev 2, with the sensor field of view | | [Top\_Case\_Rev\_1.stl](https://github.com/ARK-Electronics/ark-hardware/raw/main/ARK_Flow/case/Top_Case_Rev_1.stl) | Case top, rev 1 | | [Bottom\_Case\_Rev\_1.stl](https://github.com/ARK-Electronics/ark-hardware/raw/main/ARK_Flow/case/Bottom_Case_Rev_1.stl) | Case bottom, rev 1 | All files: [ARK\_Flow in ark-hardware](https://github.com/ARK-Electronics/ark-hardware/tree/main/ARK_Flow) ## Schematic and BOM | File | Contents | | -------------------------------------------------------------------------------------------------------------------------------------------- | ------------------------ | | [ARK\_Flow\_Rev\_2\_Schematic.pdf](https://github.com/ARK-Electronics/ark-hardware/raw/main/ARK_Flow/schematic/ARK_Flow_Rev_2_Schematic.pdf) | Schematic, rev 2 | | [ARK\_Flow\_Rev\_2\_BOM.xlsx](https://github.com/ARK-Electronics/ark-hardware/raw/main/ARK_Flow/bom/ARK_Flow_Rev_2_BOM.xlsx) | Bill of materials, rev 2 | --- # Agent Instructions This documentation is published with GitBook. GitBook is the documentation platform designed so that both humans and AI agents can read, navigate, and reason over technical content effectively. Learn more at gitbook.com. ## Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation by asking a question. Perform an HTTP GET request on the following URL with the `ask` and `goal` query parameters: ``` GET https://docs.arkelectron.com/products/sensor/ark-flow/hardware.md?ask=&goal= ``` `ask` is the immediate question: it should be specific, self-contained, and written in natural language. `goal` is what the user is ultimately trying to achieve, the reason they need the answer. Sharing it helps GitBook give you a better, more relevant answer. A goal is most helpful when it describes the outcome the user wants rather than restating the question. For example, with `ask=how do I create an API token`, a goal like `automate deployments from our CI pipeline` lets GitBook tailor the answer to that use case. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
